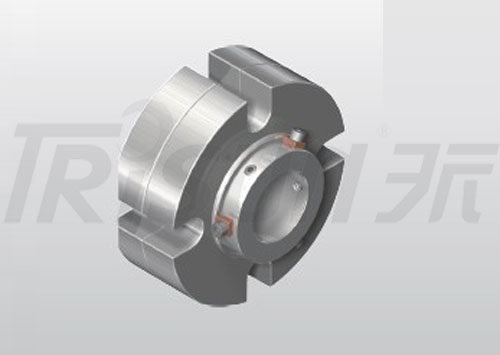

TSSC-C03 单/双端面集装式密封件
TSSC-C03 技术参数： 压力：4MPa 速率：20m/s 温度：-40℃～+204℃ 动环(碳化硅/石墨/碳化钨） 静环(碳化硅/石墨/碳化钨） 辅助密封(氟胶/包覆圈/聚四氟乙稀) 其...
我们在这里专业解决你的问题
马上联系我们吧
- 电话:0086-21-58355541
- 传真:0086-21-58353141
- 邮箱: trisun24@trisunltd.com（销售）
技术参数：
压力：≤4MPa
速率：≤20m/s
温度：-40℃～+204℃
动环(碳化硅/石墨/碳化钨）
静环(碳化硅/石墨/碳化钨）
辅助密封(氟胶/包覆圈/聚四氟乙稀)
其它部件(不锈钢/钛材/哈氏-C)
|

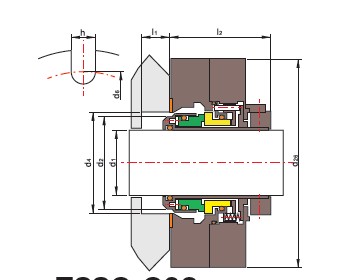

d1 |
d2 |
d4 |
d6 |
d26 |
l1 |
l2 |
h |
|||
|
min |
max |
3/8" |
1/2" |
5/8" |
||||||
|
1.75 |
2.500 |
2.810 |
0.690 |
0.570 |
5.490 |
1.910 |
3.620 |
3.75* |
- |
1.270 |
|
1.875 |
2.630 |
2.940 |
0.690 |
0.570 |
5.490 |
1.910 |
3.750 |
3.87* |
- |
1.270 |
|
2.000 |
2.750 |
3.190 |
0.690 |
0.570 |
5.490 |
1.910 |
4.000 |
4.130 |
- |
1.270 |
|
2.125 |
2.880 |
3.440 |
0.690 |
0.690 |
5.990 |
1.910 |
4.250 |
4.380 |
4.500 |
1.270 |
|
2.250 |
3.000 |
3.560 |
0.690 |
0.690 |
5.990 |
1.910 |
4.370 |
4.500 |
4.620 |
1.270 |
|
2.375 |
3.130 |
3.590 |
0.690 |
0.690 |
5.990 |
1.910 |
4.430 |
4.560 |
4.680 |
1.270 |
|
2.500 |
3.250 |
3.810 |
0.690 |
0.690 |
6.490 |
1.910 |
4.620 |
4.750 |
4.870 |
1.270 |
|
2.625 |
3.630 |
4.040 |
0.880 |
0.690 |
6.450 |
2.500 |
5.020 |
5.150 |
- |
1.770 |
|
2.750 |
3.750 |
4.380 |
0.880 |
0.690 |
7.700 |
2.500 |
5.420 |
5.550 |
- |
1.770 |
|
2.875 |
3.880 |
4.500 |
0.880 |
0.690 |
7.830 |
2.500 |
5.500 |
5.620 |
- |
1.770 |
|
3.000 |
4.000 |
4.690 |
0.880 |
0.690 |
7.940 |
2.500 |
5.650 |
5.770 |
- |
1.770 |
|
3.125 |
4.130 |
4.810 |
0.880 |
0.690 |
7.990 |
2.500 |
5.800 |
5.920 |
- |
1.770 |
|
3.250 |
4.250 |
4.940 |
0.880 |
0.690 |
8.190 |
2.500 |
5.930 |
6.050 |
- |
1.770 |
|
3.375 |
4.380 |
5.060 |
0.880 |
0.810 |
8.300 |
2.500 |
6.020 |
6.140 |
6.270 |
1.770 |
|
3.500 |
4.500 |
5.190 |
0.880 |
0.810 |
8.440 |
2.500 |
6.180 |
6.310 |
6.430 |
1.770 |
|
3.625 |
4.630 |
5.310 |
0.880 |
0.810 |
8.490 |
2.500 |
6.310 |
6.440 |
6.560 |
1.770 |
|
3.750 |
4.750 |
5.390 |
0.880 |
0.810 |
8.710 |
2.500 |
6.380 |
6.510 |
6.630 |
1.770 |
|
3.875 |
4.880 |
5.510 |
0.880 |
0.810 |
8.840 |
2.500 |
6.520 |
6.640 |
6.770 |
1.770 |
|
4.000 |
5.000 |
5.690 |
0.880 |
0.810 |
8.960 |
2.500 |
6.660 |
6.780 |
6.910 |
1.770 |
|
4.125 |
5.130 |
5.810 |
0.880 |
0.810 |
8.990 |
2.500 |
6,790 |
6.900 |
7.030 |
1.770 |
|
4.250 |
5.250 |
5.940 |
0.880 |
0.810 |
8.990 |
2.500 |
6.910 |
7.040 |
7.160 |
1.770 |
|
4.375 |
5.380 |
6.060 |
0.880 |
0.810 |
9.330 |
2.500 |
7.030 |
7.150 |
7.280 |
1.770 |
|
4.500 |
5.500 |
6.190 |
0.880 |
0.810 |
9.490 |
2.500 |
7.180 |
7.300 |
7.430 |
1.770 |
|
4.625 |
5.630 |
6.310 |
0.880 |
0.810 |
9.490 |
2.500 |
7.280 |
7.400 |
7.530 |
1.770 |
|
4.750 |
5.750 |
6.470 |
0.880 |
0.810 |
10.490 |
2.500 |
7.400 |
7.530 |
7.650 |
1.770 |
|
d1 |
d2 |
d4 |
d6 |
d26 |
l1 |
l2 |
h |
|||
|
min |
max |
3/8" |
1/2" |
5/8" |
||||||
|
45 |
64 |
73 |
18 |
13 |
139 |
49 |
95 |
97 |
- |
43 |
|
48 |
67 |
73 |
18 |
13 |
139 |
49 |
95* |
97* |
_ |
43 |
|
50 |
69 |
78 |
18 |
13 |
139 |
49 |
100 |
102 |
_ |
43 |
|
53 |
73 |
87 |
18 |
17 |
152 |
49 |
109 |
111 |
115 |
43 |
|
55 |
74 |
83 |
18 |
17 |
152 |
49 |
105 |
107 |
111 |
43 |
|
58 |
80 |
91 |
18 |
17 |
152 |
49 |
114 |
116 |
120 |
43 |
|
60 |
80 |
91 |
18 |
17 |
152 |
49 |
114 |
116 |
120 |
43 |
|
65 |
92 |
103 |
22 |
17 |
164 |
64 |
127 |
131 |
_ |
45 |
|
70 |
96 |
111 |
22 |
17 |
196 |
64 |
137 |
141 |
_ |
45 |
|
75 |
102 |
119 |
22 |
17 |
202 |
64 |
143 |
147 |
- |
45 |
|
80 |
106 |
122 |
22 |
17 |
203 |
64 |
150 |
154 |
- |
45 |
|
85 |
111 |
128 |
22 |
21 |
211 |
64 |
152 |
156 |
161 |
45 |
|
90 |
116 |
132 |
22 |
21 |
214 |
64 |
160 |
164 |
168 |
45 |
|
95 |
121 |
137 |
22 |
21 |
221 |
64 |
161 |
165 |
170 |
45 |
|
100 |
127 |
144 |
22 |
21 |
228 |
64 |
168 |
172 |
177 |
45 |
|
110 |
137 |
154 |
22 |
21 |
237 |
64 |
178 |
182 |
186 |
45 |
|
120 |
146 |
164 |
22 |
21 |
266 |
64 |
187 |
191 |
195 |
45 |
